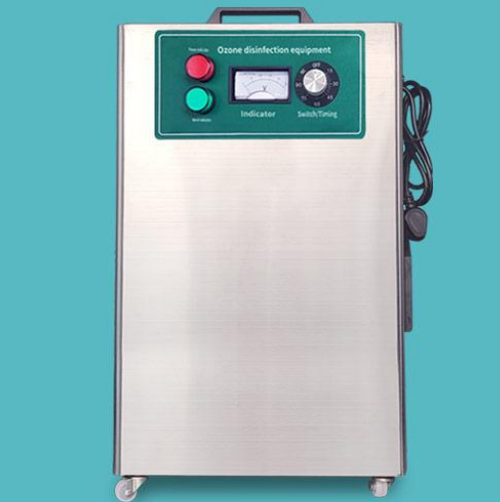

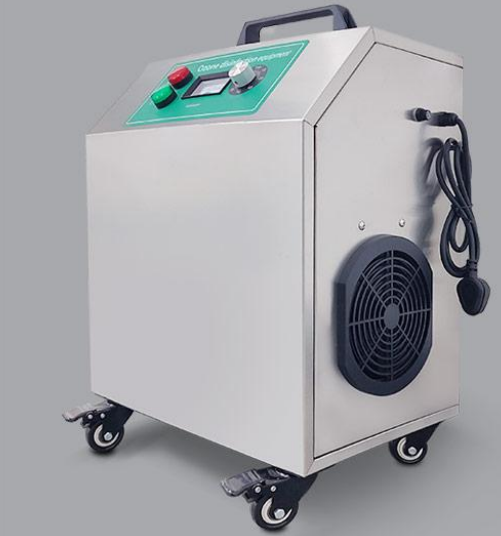

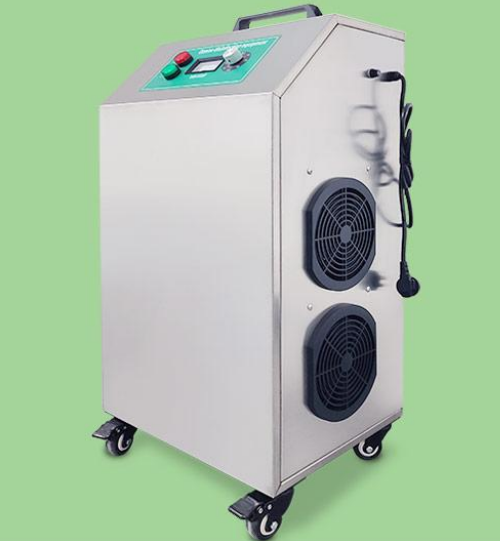

Multifunctional Mobile Ozone Generator

Multifunctional Mobile Ozone Generator

Product introduction

  High concentration dehydroxylation quartz discharge tube,low noise. At the same

time, aluminum quartz discharge tube can be used, and the unique anti backwater design(backwater is not easy to damage the machine).

  The circuit adopts module design, and the dielectric components,connectors and pipes all adopt oxidation resistant devices,which are not easy to be oxidized,have long working life and large corona area.

Functional Features

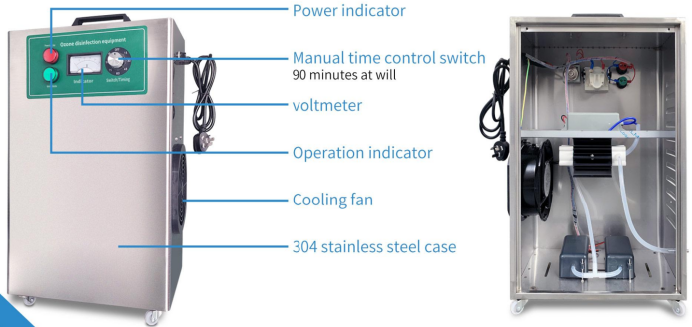

1. All stainless steel shell, air-cooled,ozone output/concentration adjustable.

2. The unique structure design makes the return water not easy to damage the ozone generator.

3. The outdoor electrode of ozone discharge is made of stainless steel, and the discharge chamber is completely sealed, which ensures reliable operation.

4. Multifunctional use, automatic/manual mode can be selected,and timing can be set. 24 hours continuous operation,long service life.

5. High speed and large air volume ensure good heat dissipation of the heating elements inside the machine,low ozone concentration decay rate, and long term use can still ensure sufficient ozone output and up to standard concentration.

Application Description

  This machine is multifunctional and can be used for air disinfection and water sterilization. It has two functions:microcomputer or timer. For space disinfection, we configure microcomputer switch, and for water disinfection, we configure timer function. It is very convenient to use. It is one of the best-selling ozone device at present.

①Treatment and use method: The customer can configure a mixing system according to the requirements of water treatment. If the ozone water concentration needs to reach more than 0.5ppm, please use 304 stainless steel mixing pump for circulating mixing. Be sure to install a backflow prevention device, or the equipment or ozone delivery pipe should be more than 0.5m higher than the highest water level to ensure that the water does not return to the ozone discharge room to damage the equipment. Also, regularly check the machine for backwater.

② Air sterilization: During air sterilization, the customer determines the sterilization time according to the actual space volume,places the ozone generator at a specific position(stable, well ventilated and heat dissipating)outside the room to be sterilized, checks whether the ozone connecting pipe is connected with the ozone output port of the machine, and leads the ozone delivery pipe into the space to be sterilized. It shall be added at a height of 2m.

③The customer performs corresponding operations according to the types of timers equipped on the machine.

Product Parameters
