Disinfection Cabinet

It can be widely used in the normal temperature disinfection and sterilization of packaging containers,work clothes,cleaning appliances,raw and auxiliary materials,molds,etc. In pharmaceutical factories, hospitals,biological products factories,cosmetics factories,food factories and other industries. It is a good helper for pharmaceutical enterprises,food industries, health drink enterprises to achieve GMP certification, HACCP certification and other production standards.

Disinfection Cabinet

Scope of application

Working principle

Ozone is one of the strongest oxidants.Its strong oxidation can kill bacteria, disinfect and degrade pesticides. It is a highly effective bactericide. It also oxidizes and denatures the protein shells of bacteria, fungi and other bacteria. When the high-voltage discharge generates ozone molecule,the ozone molecules enter the interior of the bacteria again, destroying its cell structure and oxidase, thereby killing the bacteria.

Functional Features

1.304 stainless steel shell with high temperature resistance and oxidation resistance.Sealant made of imported materials,no ozone leakage.Pull type movable partition,easy to use.

2. The power supply unit has strong load capacity and multiple protection functions, and is efficient and stable.

3. The self-developed discharge tube and special self-made power supply are used,which have high ozone concentration,rapid sterilization and high sterilization efficiency of 99.99%.

4. With timing function,fully automatic control, it can realize unattended.

5. It can effectively kill all kinds of bacteria and viruses.Ozone will be automatically degraded into oxygen within half an hour,safe and pollution-free.

6.Optional types: front and rear doors, single side doors,tempered glass doors,embedded,single turnover doors,double drawers,interlocking.

7.Optional functions: ozone, ultraviolet ray, drying(drying at 80-120 °C),time accumulation,delayed shutdown,automatic startup/shutdown,digital display of time,real-time temperature,and real-time display of ozone concentration.

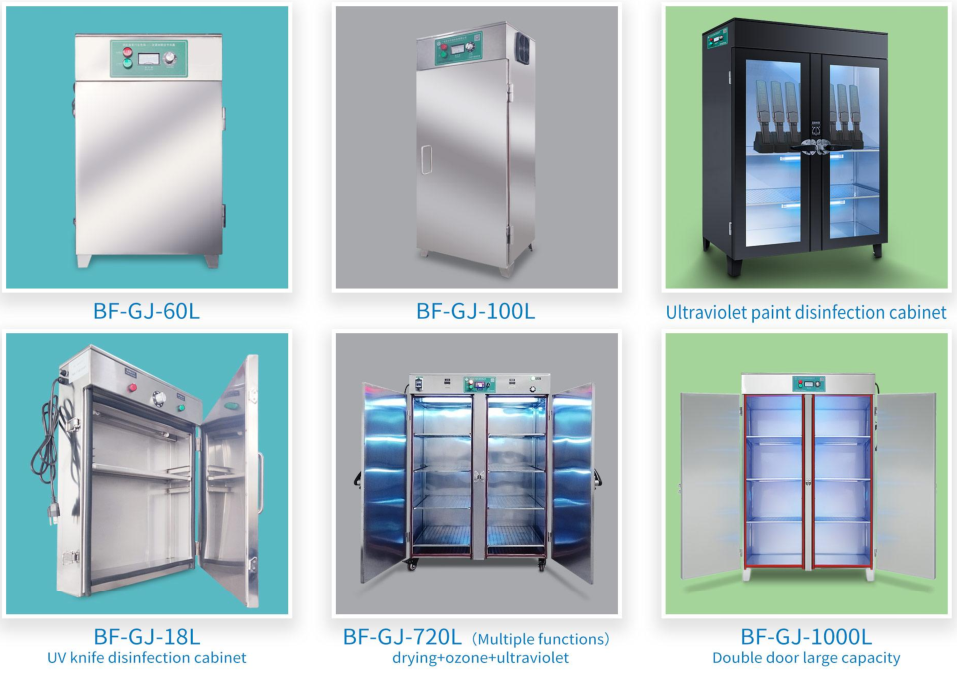

Model	Power/Voltage	Capacity	Size
BF-GJ-A35	80W/220V	≈36L	450x330x560mm
BF-GJ-A60	80W/220V	≈60L	450x330x760mm
BF-GJ-A100	80W/220V	≈100L	450x330x1060mm
BF-GJ-A160	100W/220V	≈160L	550x430x1060mm
BF-GJ-A200	100W/220V	≈200L	550x430x1260mm
BF-GJ-A240	100W/220V	≈240L	550x430x1510mm
BF-GJ-A300	100W/220V	≈300L	600x480x1510mm
BF-GJ-A320	100W/220V	≈320L	600x510x1510mm
BF-GJ-A380	100W/220V	≈380L	700x510x1510mm
BF-GJ-A400	180W/220V	≈400L	750x510x1510mm
BF-GJ-A500	180W/220V	≈500L	850x510x1610mm
BF-GJ-A600	180W/220V	≈600L	1050x530x1510mm
BF-GJ-A720	180W/220V	≈720L	1050x630x1510mm
